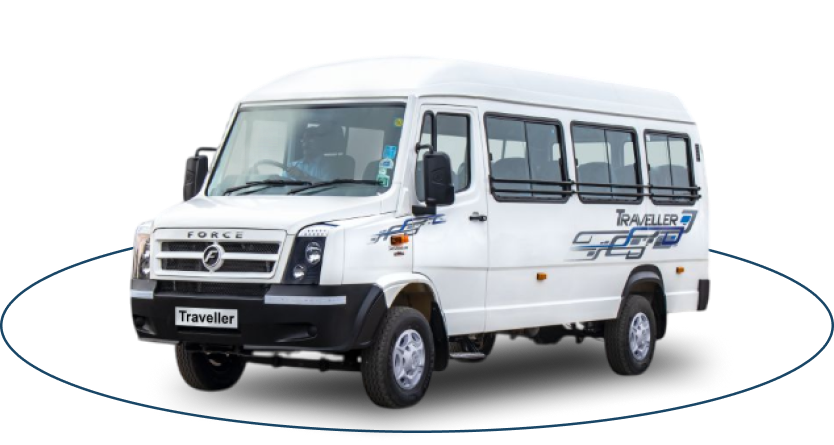

TRAVELLER

3700WB

Starting From -

₹ 5,92,300 (*Ex Showroom Price)

Traveller 3700wb

SALIENT FEATURES

Twin Blower AC for uniform and better climate control (optional)

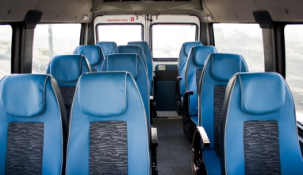

Luxurious high back Recliner seats with Armrest (optional)

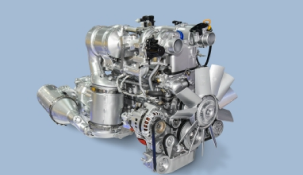

Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train

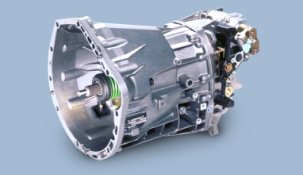

Synchromesh G-32 Gear Box for Effortless Gear Shifting

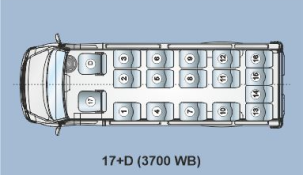

17+D (3700 WB)

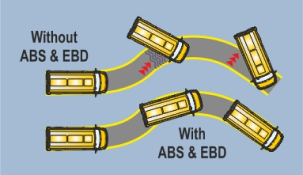

ABS and EBD

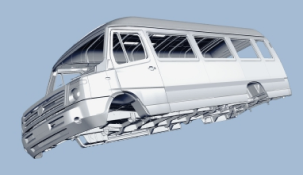

Monocoque body ensures total safety and car like ride quality

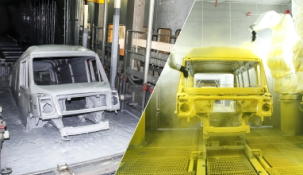

C.E.D. Primer Application and Robotic Top Coat painting for Paint Gloss Retention

TECHNICAL SPECIFICATIONS

ENGINE

Engine

FM 2.6 CR ED

Emission

BS-VI Stage 2

Type

4 Cyl, Common Rail DI TCIC

Bore x Stroke (mm)

90.9 x 100

Max Output

85kW (114hp) @ 2950 rpm

Max Torque

350Nm @ 1400-2200 rpm

TRANSMISSION

Type

Manual, Gear Lock Synchromesh on forward gears

Model

G32-5

AXLES

Front

Independent

Rear

Live Rigid

BODY

Type

Monocoque construction

SUSPENSION

Front & Rear

Spring Semi elliptical

Shock absorbers

Hydraulic telescopic double acting at front and rear

STEERING

Type

Power Steering

Anti roll bar

Yes

ANTI ROLL BAR

Shock absorber

Hydraulic telescopic double acting both at front & rear

BRAKES

Type

Dual circuit, hydraulic, vacuum assisted, auto slack adjuster, ABS with EBD

Auto Slack Adjuster

Yes

Front

Disc

Rear

Drum

Parking

Mechanical acting on rear wheel

WHEELS & TYRES

Size

215/75 R 15

Tyre Type

Radial with Tube/Tubeless / (4+1)

DIMENSIONS (mm)

Wheel Base

3700

Overall Length

6265

Overall Width

1900

Overall Height

2550

Ground Clearance

200

WEIGHT (kg)

Maximum GVW

4300

CAPACITY

Fuel Tank

70 Litres

Seating Type

Recliner/ High back/ Std.

SEATING CAPACITY

Seating Capacity

17+D/12+D
