SCHOOL BUS
TRAVELLER
Monobus School
Starting From -
₹ 5,92,300 (*Ex Showroom Price)

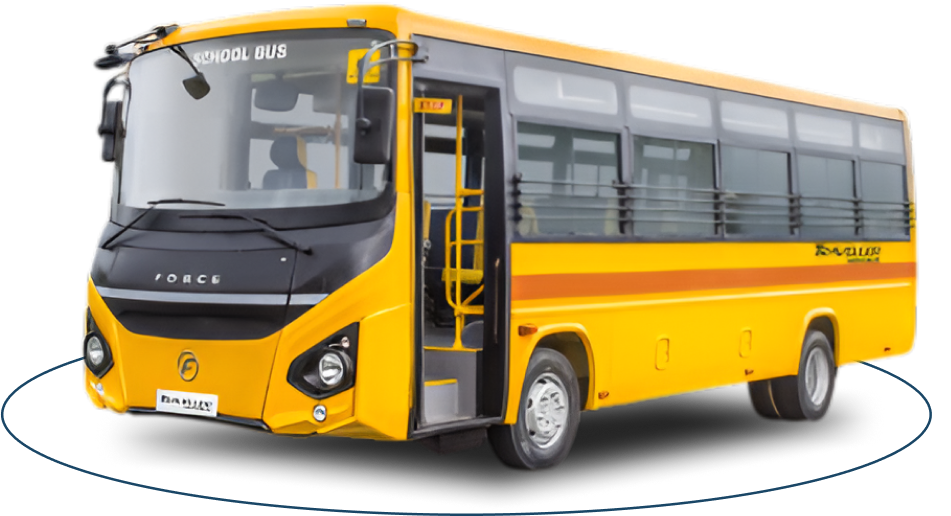

TRAVELLER MONOBUS SCHOOL
SALIENT FEATURES

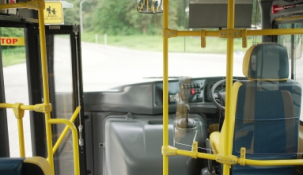

Driver partition provided

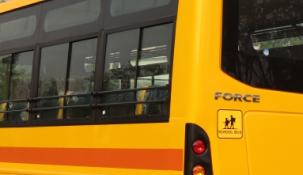

Thoughtfully placed Bar railing for additional safety

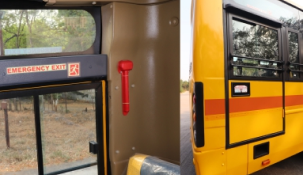

Easy access, Emergency Door Options

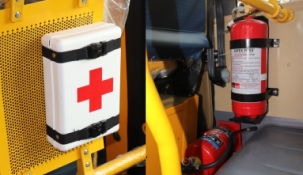

First-Aid, Fire extinguisher & FDSS in case of emergency

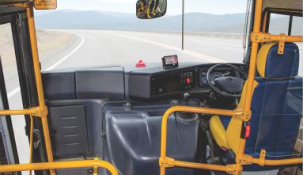

Smart Dashboard & large internal rear view mirror
Seating capacity 48 + A + D

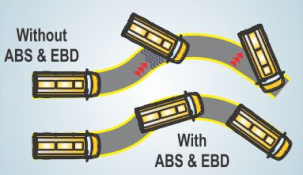

ABS with EBD

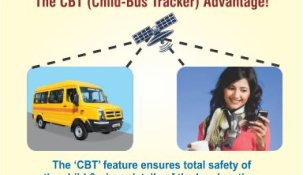

The 'CBT' feature ensures total safety of the child & gives details of the bus location
TECHNICAL SPECIFICATIONS
ENGINE
Engine
FM 2.6 CR CD
Bore x Stroke (mm)
90.9x100
Emission
BS-VI Stage 2
Type
4 Cyl, Common Rail DI TCIC
Displacement
2596 cc
Max Output
85kW (114 hp)@ 2950 rpm
Max Torque
350 Nm @ 1400 - 2200 rpm
GEAR BOX
Make & Model
G35-5
Type
Manual, Synchromesh
No. of Gears
5 Forward + 1 Reverse
BODY
Type
Monocoque Construction
SUSPENSION
Front & Rear
Parabolic Leaf Spring
Anti roll bar
Front-Yes, Rear-Yes
Shock absorbers
Front - Yes,Rear - Yes
BRAKES
Service Brakes
Dual circuit, hydraulic, hydraulic assisted (Unibooster) with ABS, EBD, ESP & HBC
Front
Disc
Rear
Disc
Parking
Mechanical acting on Transmission
DIMENSIONS (mm)
Wheel Base
4020
Overall Length
8430
Overall Width
2400
Overall Height
2910
Ground Clearance
185
WEIGHT (kg)
Maximum GVW
8160
CAPACITY
Fuel & Ad Blue Capacity
120 Ltrs / 23.5 ltrs
SEATING CAPACITY
Seating Capacity
29/32+A+D (2X2)
41+A+D (3X2)
43+A+D (3X2)
48+A+D (3X3)
