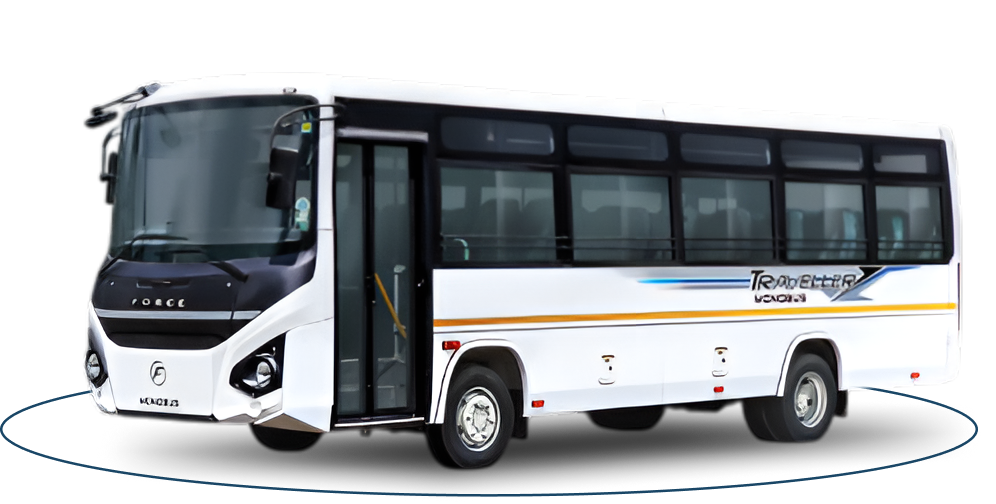

TRAVELLER

MonoBus

Starting From -

₹ 5,92,300 (*Ex Showroom Price)

PASSENGER MONOBUS

SALIENT FEATURES

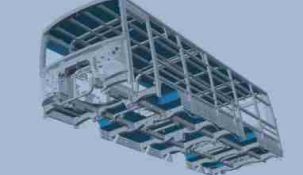

Light weight Monocoque body contributes to phenomenal mileage, best-in-class safety and Car like ride quality

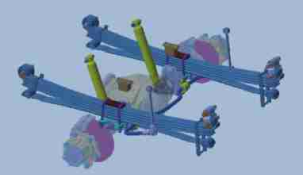

Parabolic Suspension for excellent ride quality

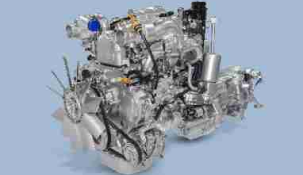

Mercedes derived, highly powerful and fuel efficient engine

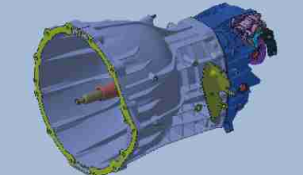

Synchromesh G-35 Gearbox for effortless gear shifting

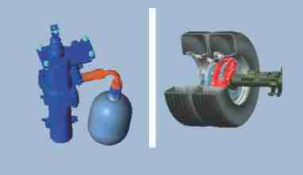

All wheel Hydraulic Disc brakes with Uni-booster with ABS, ETDC, HBC for enhanced braking

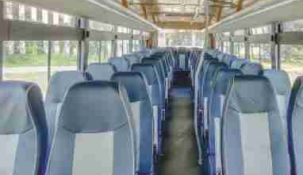

Wide and comfortable seats ensure comfortable ride

33+D

TECHNICAL SPECIFICATIONS

ENGINE

Engine

FM 2.6 CR CD

Emission

BS-VI Stage 2

Type

4 Cyl, Common Rail DI TCIC

Displacement

2596 cc

Max Output

85kW (114 hp)@ 2950 rpm

Max Torque

350 Nm @ 1400 - 2200 rpm

GEAR BOX

Cargo Box (L x W x H)

2240 x 1470 x 1230

Cargo Vol.(m3)

2.1 m3

Ground Clearance (mm)

191

AXLES

Front

Dead Rigid, I-Beam & Reverse Elliot

Rear

Live Rigid

TRANSMISSION

Type

G35/5 Manual,full synchromesh, cable shift

No. of Gears

5 Forward + 1 Reverse

SUSPENSION

Type / Description

Leaf spring

Spring - Front

Parabolic

Spring - Rear

Parabolic

Anti roll bar

Front-Yes, Rear-Yes

Shock absorbers

Hydraulic telescopic double acting at front & rear

STEERING

Type

Power Steering

BRAKES

Service Brakes

Dual circuit, Hydraulic assisted (Unibooster) with ABS, EBD, HBC and ESP

Front

Disc

Rear

Disc

Parking

Mechanical acting on Transmission

WHEELS & TYRES

Tyre Size

225 / 75 R 17.5

Tyre Type

Radial tubeless

DIMENSIONS (mm)

Wheel Base

4020

Overall Length

8430

Overall Width

2400

Overall height with roof hatch / AC

3062/3210

Ground Clearance

185

WEIGHT (kg)

Maximum GVW

7845

Seat option

High back / Standard

CAPACITY

Fuel Tank

120 Litres

AdBlue

SEATING CAPACITY

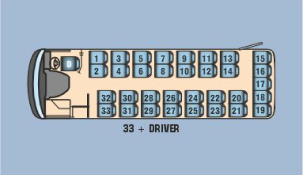

Seating Capacity

33+D
