Traveller Ambulance
TRAVELLER

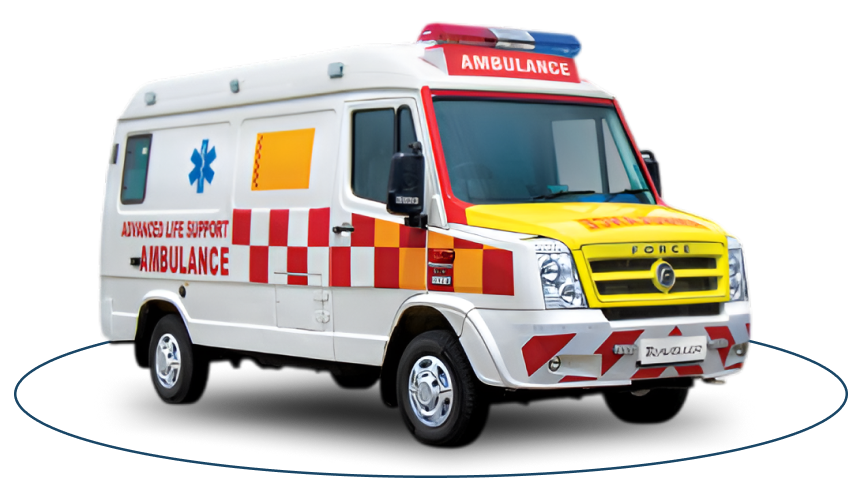

LIFE SUPPORT AMBULANCE (TYPE D)
Starting From -
₹ 5,92,300 (*Ex Showroom Price)
ADVANCE LIFE SUPPORT AMBULANCE (TYPE D)
SALIENT FEATURES
Twin Blower AC for uniform and better climate control (optional)
Luxurious high back Recliner seats with Armrest (optional)

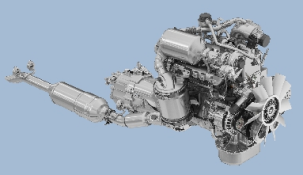

Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train
Synchromesh G-32 Gear Box for Effortless Gear Shifting
Twin Blower AC for uniform and better climate control (optional)
Luxurious high back Recliner seats with Armrest (optional)
Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train
Synchromesh G-32 Gear Box for Effortless Gear Shifting
TECHNICAL SPECIFICATIONS
ENGINE
Engine
FM 2.6 CR ED
Emission
BS-VI Stage 2
Type
4 Cyl, Common Rail DI TCIC
Bore x Stroke (mm)
90.9 x 100
Max Output
85kW (114hp) @ 2950 rpm
Max Torque
350Nm @ 1400-2200 rpm
TRANSMISSION
Type
G32-5, Synchromesh
No. of Gears
5 Forward & 1 Reverse
AXLES
Front
Dead Rigid, I-Beam & Reverse Elliot Type
Rear
Live Rigid
BODY
Type

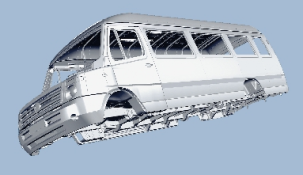

Monocoque construction
SUSPENSION
Front & Rear
Semi Elliptical Leaf Springs with Hydraulic Shock Absorber and Anti Roll Bar
Rear
Semi Elliptical Leaf Springs with Hydraulic Shock Absorbers
STEERING
Type
Power Steering
Brakes
Hydraulic, dual circuit, vacuum assisted ABS with EBD
BRAKES
Front
Disc
Rear
Drum
Parking
Mechanical on rear wheels
WHEELS & TYRES
Tyre Size
215/75 R15
Tyre Type
Radial with Tube / Tubeless (4+1)
DIMENSIONS (mm)
Wheel Base
3350
Overall Length
5615
Overall Width
1900
Overall Height
2550
Ground Clearance
200
WEIGHT (kg)
Maximum GVW
4150
TURNING RADIUS (m)
Radius
6.5
SEATING CAPACITY
Type-D
9+P+D
