    TRAVELLER

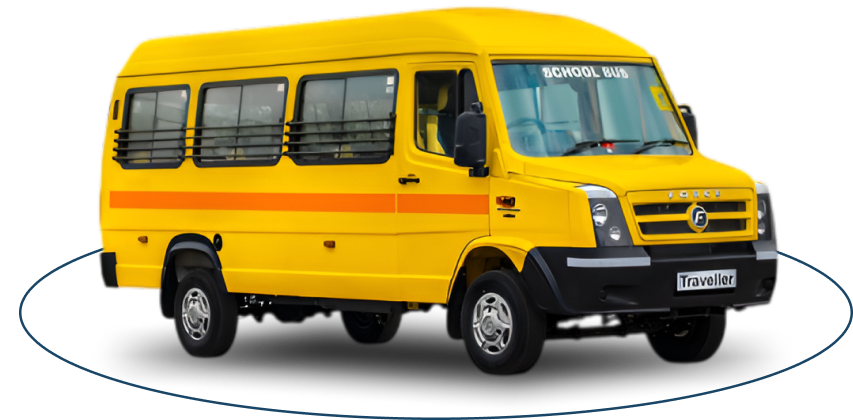

    School Bus

    Starting From -

    ₹ 5,92,300 (*Ex Showroom Price)

    School Bus 3350

    SALIENT FEATURES

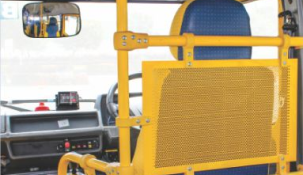

    Large Internal Rear View Mirror and Driver partition

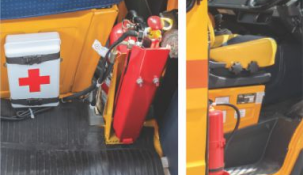

    First Aid Kit & Fire Extinguishers in case of an emergency

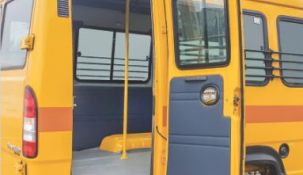

    Emergency Exit Door for Easy Exit

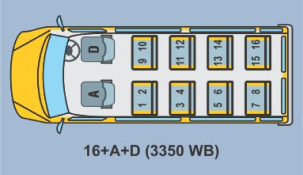

    16+D

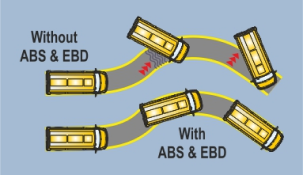

    ABS and EBD

    TECHNICAL SPECIFICATIONS

    ENGINE

    Engine

    FM 2.6 CR ED

    Emission

    BS-VI Stage 2

    Type

    4 Cyl, Common Rail DI TCIC

    Bore x Stroke (mm)

    90.9 x 100

    Max Output

    85kW (114hp) @ 2950 rpm

    Max Torque

    350Nm @ 1400-2200 rpm

    TRANSMISSION

    Type

    Manual, Synchromesh

    Model

    G32-5

    No. of Gears

    5 Forward + 1 Reverse

    BODY

    Type

    Monocoque construction

    SUSPENSION

    Front & Rear

    Front - Yes Rear - Optional

    Shock absorbers

    Hydraulic telescopic double acting at front and rear

    BRAKES

    Service Brakes

    Dual circuit, hydraulic, vacuum assisted ABS with EBD and ESP (for T2)

    Auto Slack Adjuster

    Yes

    Front

    Disc

    Rear

    Drum

    Parking

    Mechanical acting on rear wheel

    DIMENSIONS (mm)

    Wheel Base

    3700

    Overall Length

    6265

    Overall Width

    1900

    Overall Height

    2550

    Ground Clearance

    200

    WEIGHT (kg)

    Maximum GVW

    4400

    CAPACITY

    Fuel & Ad Blue Capacity

    70 Ltrs / 23.5 ltrs

    SEATING CAPACITY

    Seating Capacity

    16+A+D (2X1)
    20+A+D (2X2)
