TRAVELLER

DV 4020WB

Starting From -

₹ 5,92,300 (*Ex Showroom Price)

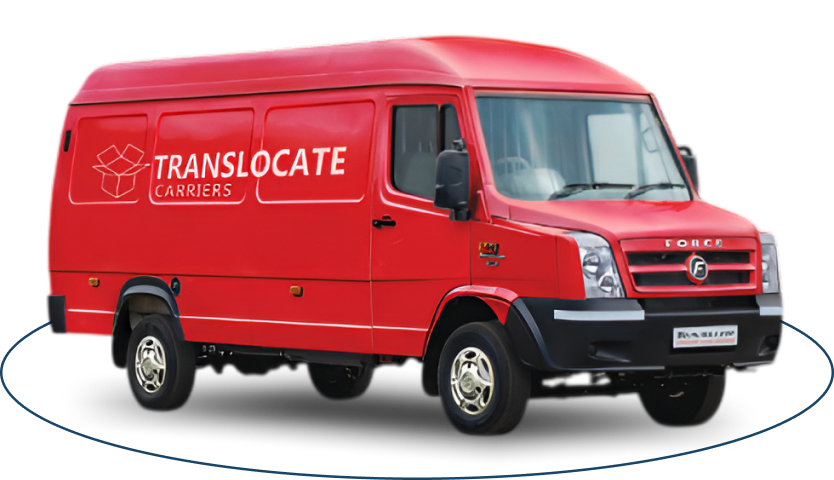

Traveller DV 4020WB

SALIENT FEATURES

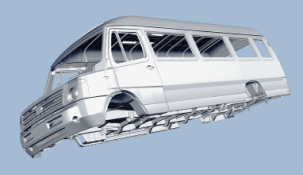

Lighter & Stronger pressed steel body with Monocoque construction. Outstanding structural strength and unmatched.

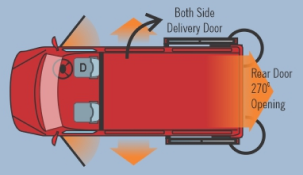

India’s first product to have the option of sliding doors on driver and co-driver side in addition to 270o opening rear door.

Vehicle tracking and surveillance system (optional) India’s 1st product with live tracking

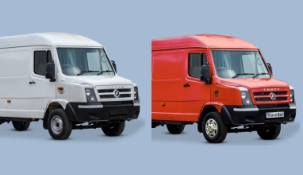

Red & White colour options

Sliding door (option) for kerb side delivery

Payload 1564

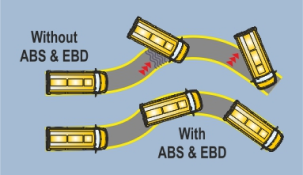

ABS and EBD

TECHNICAL SPECIFICATIONS

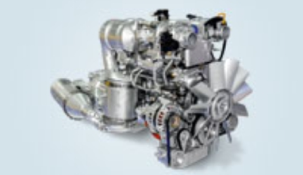

ENGINE

Engine

FM 2.6 CR ED

Emission

BS-VI Stage 2

Type

4 Cyl, Common Rail DI TCIC

Bore x Stroke (mm)

90.9 x 100

Max Output

85kW (114hp) @ 2950 rpm

Max Torque

350Nm @ 1400-2200 rpm

CLUTCH

Clutch

Dry friction, single plate & hydraulically actuated

GEAR BOX

Model

G32-5

Type

Synchromesh

No. of Gears

5Front +1Reverse

BODY

Type

Monocoque construction

SUSPENSION

Front & Rear

Spring Semi elliptical

Anti roll bar

Front-Yes, Rear (Optional)

Shock absorbers

Hydraulic telescopic double acting at front & rear

STEERING

Type

Power Steering

CARGO BOX

Cargo Box L X W X H

4653x1680x1830

Cargo Area (m 2)

7.3

Cargo Vol (m 3)

13.2

BRAKES

Type

Hydraulic, Dual circuit, vacuum assisted

Auto Slack Adjuster

Yes

Front

Disc

Rear

Disc

Parking

Mechanical acting on Propeller Shaft

WHEELS & TYRES

Size

235 / 65 R16

Tyre Type

Radial with Tube / tubeless (4 + 1)

DIMENSIONS (mm)

Wheel Base

3700

Overall Length

4020

Overall Width

1900

Overall Height

2550

Ground Clearance

200

WEIGHT (kg)

Maximum GVW

4530

CAPACITY

Fuel Tank

70 Litres

SEATING CAPACITY

Seating Capacity

1+D
