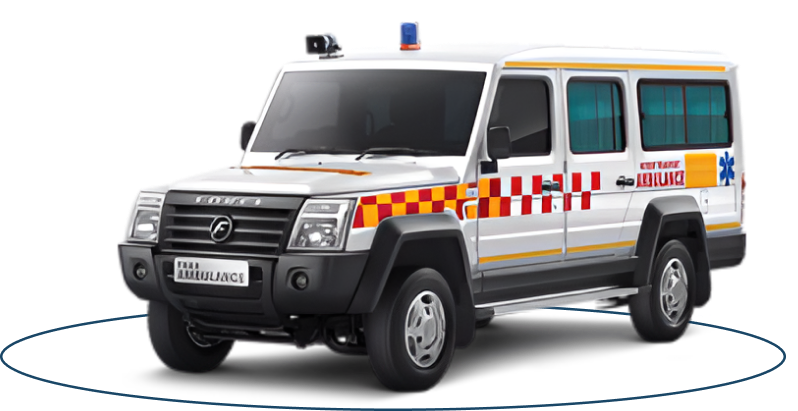

Trax Ambulance
Trax
Trax Ambulance
Starting From -
₹ 5,92,300 (*Ex Showroom Price)
TRAX AMBULANCE
SALIENT FEATURES

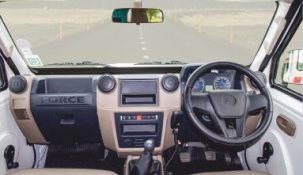

All new interiors, new seats, dual tone dashboard and new instrument cluster

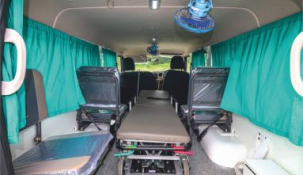

Foldable seats for convenient movement, Swivelling Fans and Ample lighting

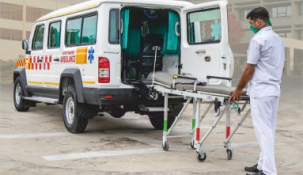

Autoloader Stretcher mounted through specially designed ramp

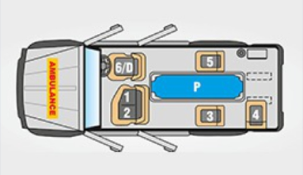

Seating Layout D+5+1P (Note: P - Patient stretcher equal to 4 seating positions)
All new interiors, new seats, dual tone dashboard and new instrument cluster
Foldable seats for convenient movement, Swivelling Fans and Ample lighting
Autoloader Stretcher mounted through specially designed ramp
Seating Layout D+5+1P (Note: P - Patient stretcher equal to 4 seating positions)
TECHNICAL SPECIFICATIONS
ENGINE
Engine
FM2.6CR ED
Emission
BS-VI Stage 2
Type
4 Cyl, Common Rail DI TCIC
Displacement
2596 cc
Max Output
67 kW (90 hp) @ 3200 rpm
Max Torque
250 Nm @ 1400-2400 rpm
GEAR BOX
Type
G-28/5B, Synchromesh Gear Box with Cable Shift
No. of gears
5 Forward, 1 Reverse
AXLES
Front
Independent
Rear
Live Rigid
BODY
Type
Rectangular, C in C type chassis section
SUSPENSION
Front
Independent type, double wishbone
Rear
Leaf spring
SPRINGS
Type
Power assisted Hydraulic Rack & Pinion
BRAKES
Service Brakes
Dual circuit, hydraulic vacuum assisted with auto wear adjuster
Front
Disc
Rear
Drum
Parking
Mechanical acting on rear wheels
WHEELS & TYRES
Tyre Size
215/75 R15 LT
Tyre Type
Radial Tubeless
DIMENSIONS (mm)
Wheel Base
3050
Overall Length
5120
Overall Width
1818
Overall Height
2027
Ground Clearance
191
WEIGHT (kg)
Maximum GVW
3100
CAPACITY
Fuel Tank
63.5 Litres/AdBlue 20
AbBlue
20
SEATING CAPACITY
Seating Capacity
6 + P
