    Trax

    Trax DCPU

    Starting From -

    ₹ 5,92,300 (*Ex Showroom Price)

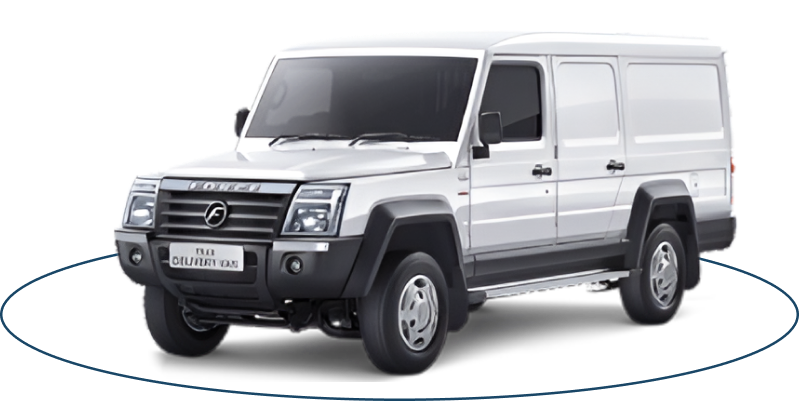

    TRAX DCPU

    SALIENT FEATURES

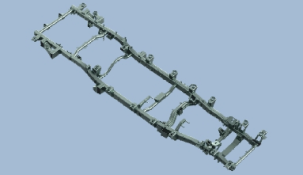

    All New C-in-C Chassis Rectangular Type, for Excellent Bending Strength and Torsional Rigidity

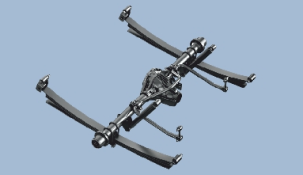

    All New Suspension for Excellent Ride Comfort

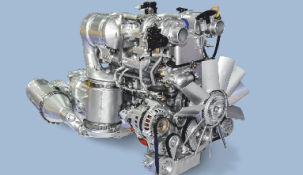

    Mercedes Derived, FM 2.6 CR CD BSVI Engine Powerful & Fuel Efficient

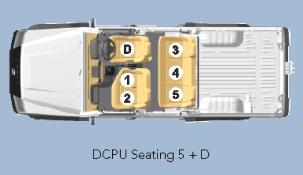

    DCPU Van D+5

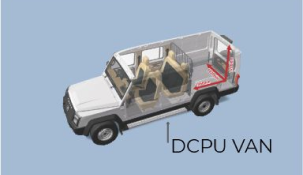

    DCPU Van

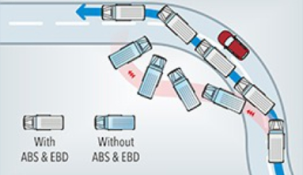

    ABS with EBD for best in class safety

    TECHNICAL SPECIFICATIONS

    ENGINE

    Engine

    FM2.6CR ED

    Emission

    BS-VI Stage 2

    Type

    4 Cyl, Common Rail DI TCIC

    Displacement

    2596 cc

    Max Output

    67 kW (90 hp) @ 3200 rpm

    Max Torque

    250 Nm @ 1400-2400 rpm

    GEAR BOX

    Cargo Box (L x W x H)

    2240 x 1470 x 1230

    Cargo Vol.(m3)

    2.1 m3

    Ground Clearance (mm)

    191

    AXLES

    Front

    Independent

    Rear

    Live Rigid

    TRANSMISSION

    Type

    Manual, Synchromesh

    Model

    G28/5B

    No. of Gears

    5Front +1Reverse

    SUSPENSION

    Front

    Independent Type, Double Wishbone,Torsion Bar With Anti Roll Bar

    Rear

    Leaf Spring type with shock absorber & anti roll bar

    SPRINGS

    Type

    Power steering - Rack & Pinion

    Turning Radius

    6.1 m

    BRAKES

    Service Brakes

    Dual circuit, hydraulic vacuum assisted with autowear adjuster, ABS with EBD

    Front

    Disc

    Rear

    Drum

    Parking

    Mechanical acting on rear wheels

    WHEELS & TYRES

    Tyre Size

    215/75 R15 LT

    Tyre Type

    Radial / Tubeless

    DIMENSIONS (mm)

    Wheel Base

    3050

    Overall Length

    5120

    Overall Width

    1818

    Overall Height

    2027

    Overhang Front

    820

    WEIGHT (kg)

    Maximum GVW

    3100

    Maximum FAW

    1205

    Maximum RAW

    1895

    CAPACITY

    Fuel Tank

    63.5 Litres/AdBlue 20

    SEATING CAPACITY

    Seating Capacity

    5 + D
