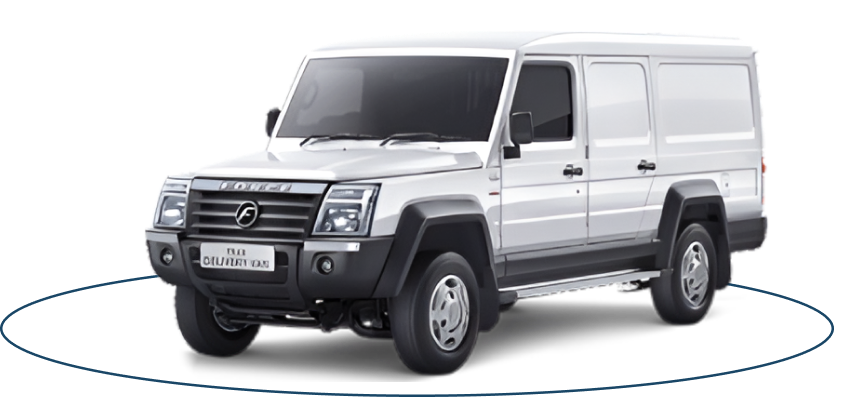

Delivery Van
Trax
TRAX DV
Starting From -
₹ 5,92,300 (*Ex Showroom Price)
TRAX DV
SALIENT FEATURES

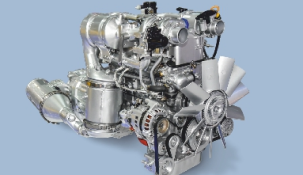

Mercedes Derived, FM 2.6 CR CD BSVI Engine Powerful & Fuel Efficient

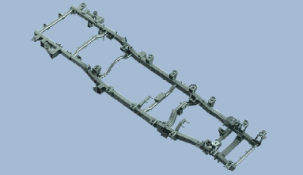

All New C-in-C Chassis Rectangular Type, for Excellent Bending Strength and Torsional Rigidity

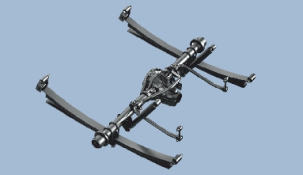

All-New Suspension Excellent Ride Comfort

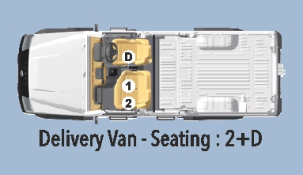

SEATING LAYOUT: 2+D

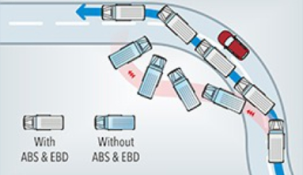

ABS and EBD For Best in Class Safety
TECHNICAL SPECIFICATIONS
ENGINE
Engine
FM 2.6 CR CD
Emission
BS-VI Stage 2
Type
4 Cyl, Common Rail DI TCIC
Displacement
2596 cc
Max Output
67 kW (90 hp) @ 3200 rpm
Max Torque
250 Nm @ 1400-2400 rpm
GEAR BOX
Cargo Box (L x W x H)
2240 x 1470 x 1230
Cargo Vol.(m3)
2.1 m3
Ground Clearance (mm)
191
AXLES
Front
Independent
Rear
Live Rigid
TRANSMISSION
Type
Manual, Synchromesh
Model
G28/5B
No. of Gears
5Front +1Reverse
SUSPENSION
Front
Independent Type, Double Wishbone,Torsion Bar With Anti Roll Bar
Rear
Leaf Spring type with shock absorber & anti roll bar
SPRINGS
Type
Power steering - Rack & Pinion
Turning Radius
6.1 m
BRAKES
Service Brakes
Dual circuit, hydraulic vacuum assisted with autowear adjuster, ABS with EBD
Front
Disc
Rear
Drum
Parking
Mechanical acting on rear wheels
WHEELS & TYRES
Tyre Size
215/75 R15 LT
Tyre Type
Radial / Tubeless
DIMENSIONS (mm)
Wheel Base
3050
Overall Length
5120
Overall Width
1818
Overall Height
2027
Ground Clearance
191
WEIGHT (kg)
Maximum GVW
2900
Maximum FAW
1205
Maximum RAW
1795
CAPACITY
Fuel Tank
63.5 Litres/AdBlue 20
SEATING CAPACITY
Seating Capacity
2 + D
