Trax

Toofan

Starting From -

₹ 5,92,300 (*Ex Showroom Price)

TRAX TOOFAN

SALIENT FEATURES

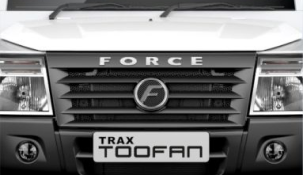

Modern & Attractive Front Fascia with New Bumper and Integrated Fog Lamps (optional)

Clear Lens Composite Headlamp

Stuck Glass Windscreen

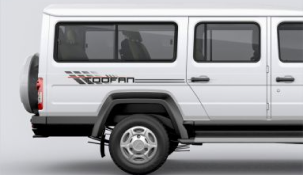

Extra Wide Side Windows with Attractive Side Farings

Pull Type Door Handles and Latches

Easy Entry and Exit

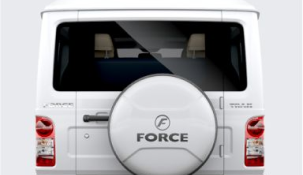

Stuck glass windscreen and door mounted Stepney, Stepney cover (optional)

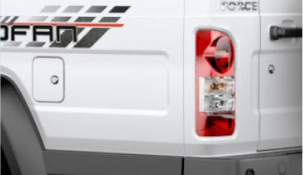

Stylish Blinkers

TECHNICAL SPECIFICATIONS

ENGINE

Engine

FM 2.6 CR CD

Emission

BS-VI Stage 2

Type

4 Cyl, Common Rail DI TCIC

Displacement

2596 cc

Max Output

67 kW (90 hp) @ 3200 rpm

Max Torque

250 Nm @ 1400-2400 rpm

GEAR BOX

Type

Manual, Gear Lock Synchromesh on forward gears

No. of Gears

5 Forward, 1 reverse

AXLES

Front

Independent

Rear

Live Rigid

BODY

Rectangular Long member :

C-in-C type chassis section

SUSPENSION

Front

Independent type, double wishbone

Rear

Leaf spring

SPRINGS

Front

Torsion bar

Rear

Parabolic leaf spring

BRAKES

Service Brakes

Dual circuit, hydraulic,vacuum assisted with auto wear adjuster

ABS, EBD

Yes

Front

Disc

Rear

Parking

Mechanical acting on rear wheels

WHEELS & TYRES

Tyre Size

215/75 R15 LT

Tyre Type

Radial with tubeless

DIMENSIONS (mm)

Wheel Base

3050

Overall Length

5120

Overall Width

Overall Height

2027

Ground Clearance

191

WEIGHT (kg)

Maximum GVW

3180

CAPACITY

Fuel Tank

63.5 Litres

AdBlue

SEATING CAPACITY

Seating Capacity

11+D
